# Multinomial Logistic Regression
## Introduction
### Prof. Maria Tackett

---

class: middle, center

## [Click for PDF of slides](23-multinom-logistic.pdf)

---

## Topics

- Introduce multinomial logistic regression

- Interpret model coefficients

- Inference for a coefficient `$\beta_{jk}$`

---

## Generalized Linear Models (GLM)

- In practice, there are many different types of response variables including:

+ **Binary**: Win or Lose
  + **Nominal**: Democrat, Republican or Third Party candidate
  + **Ordered**: Movie rating (1 - 5 stars)
  + and others...

- These are all examples of **generalized linear models**, a broader class of models that generalize the multiple linear regression model

- See [*Generalized Linear Models: A Unifying Theory*](https://bookdown.org/roback/bookdown-bysh/ch-glms.html) for more details about GLMs

---

## Binary Response (Logistic)

- Given `$P(y_i=1|x_i)= \hat{\pi}_i\hspace{5mm} \text{ and } \hspace{5mm}P(y_i=0|x_i) = 1-\hat{\pi}_i$`

`$$\log\Big(\frac{\hat{\pi}_i}{1-\hat{\pi}_i}\Big) = \hat{\beta}_0 + \hat{\beta}_1 x_{i}$$`

- We can calculate `$\hat{\pi}_i$` by solving the logit equation:

`$$\hat{\pi}_i = \frac{\exp\{\hat{\beta}_0 + \hat{\beta}_1 x_{i}\}}{1 + \exp\{\hat{\beta}_0 + \hat{\beta}_1 x_{i}\}}$$`

---

## Binary Response (Logistic)

Suppose we consider `$y=0$` the .vocab[baseline category] such that

`$$P(y_i=1|x_i) = \hat{\pi}_{i1} \hspace{2mm}  \text{ and } \hspace{2mm} P(y_i=0|x_i) = \hat{\pi}_{i0}$$`

Then the logistic regression model is

`$$\log\bigg(\frac{\hat{\pi}_{i1}}{1- \hat{\pi}_{i1}}\bigg) = \log\bigg(\frac{\hat{\pi}_{i1}}{\hat{\pi}_{i0}}\bigg) = \hat{\beta}_0 + \hat{\beta}_1 x_i$$`

Slope, `$\hat{\beta}_1$`: When `$x$` increases by one unit, the odds of `$y=1$` versus the baseline `$y=0$` are expected to multiply by a factor of `$\exp\{\hat{\beta}_1\}$`

Intercept, `$\hat{\beta}_0$`: When `$x=0$`, the predicted odds of `$y=1$` versus the baseline `$y=0$` are `$\exp\{\hat{\beta}_0\}$`

---

## Multinomial response variable

- Suppose the response variable `$y$` is categorical and can take values `$1, 2, \ldots, K$` such that `$(K > 2)$`

- Multinomial Distribution:

`$$P(y=1) = \pi_1, P(y=2) = \pi_2, \ldots, P(y=K) = \pi_K$$`

such that `$\sum\limits_{k=1}^{K} \pi_k = 1$`

---

## Multinomial Logistic Regression

- If we have an explanatory variable `$x$`, then we want to fit a model such that `$P(y = k) = \pi_k$` is a function of `$x$`

- Choose a baseline category. Let's choose `$y=1$`.  Then,

.eq[
`$$\log\bigg(\frac{\pi_{ik}}{\pi_{i1}}\bigg) = \beta_{0k} + \beta_{1k} x_i$$`
]

- In the multinomial logistic model, we have a separate equation for each category of the response relative to the baseline category
    - If the response has `$K$` possible categories, there will be `$K-1$` equations as part of the multinomial logistic model

---

## Multinomial Logistic Regression

- Suppose we have a response variable `$y$` that can take three possible outcomes that are coded as "A", "B", "C"

- Let "A" be the baseline category. Then

`$$\log\bigg(\frac{\pi_{iB}}{\pi_{iA}}\bigg) = \beta_{0B} + \beta_{1B}x_i \\[10pt]
\log\bigg(\frac{\pi_{iC}}{\pi_{iA}}\bigg) = \beta_{0C} + \beta_{1C} x_i$$`

---

## NHANES Data

- [National Health and Nutrition Examination Survey](https://www.cdc.gov/nchs/nhanes/index.htm) is conducted by the National Center for Health Statistics (NCHS)

- The goal is to *"assess the health and nutritional status of adults and children in the United States"*

- This survey includes an interview and a physical examination

---

## NHANES Data

- We will use the data from the `NHANES` R package

- Contains 75 variables for the 2009 - 2010 and 2011 - 2012 sample years

- The data in this package is modified for educational purposes and should **not** be used for research

- Original data can be obtained from the [NCHS website](https://www.cdc.gov/nchs/data_access/index.htm) for research purposes

- Type `?NHANES` in console to see list of variables and definitions

---

## Health Rating vs. Age & Physical Activity

- **Question**: Can we use a person's age and whether they do regular physical activity to predict their self-reported health rating?

- We will analyze the following variables:

+ `HealthGen`: Self-reported rating of participant's health in general. Excellent, Vgood, Good, Fair, or Poor.

 + `Age`: Age at time of screening (in years). Participants 80 or older were recorded as 80.

 + `PhysActive`: Participant does moderate to vigorous-intensity sports, fitness or recreational activities

---

## The data

```
## Rows: 6,710
## Columns: 4
## $ HealthGen <fct> Good, Good, Good, Good, Vgood, Vgood, Vgood, Vgood, Vgood, …
## $ Age <int> 34, 34, 34, 49, 45, 45, 45, 66, 58, 54, 50, 33, 60, 56, 56,…
## $ PhysActive <fct> No, No, No, No, Yes, Yes, Yes, Yes, Yes, Yes, Yes, No, No, …
## $ obs_num <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, …
```

---

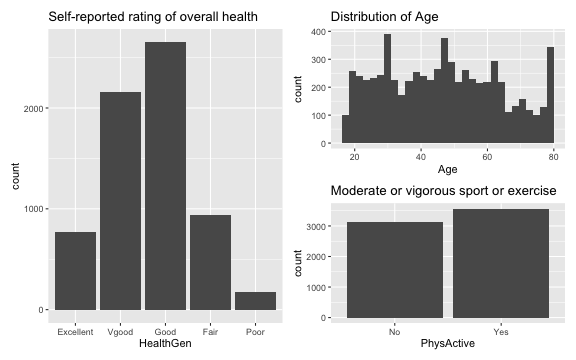

## Exploratory data analysis

---

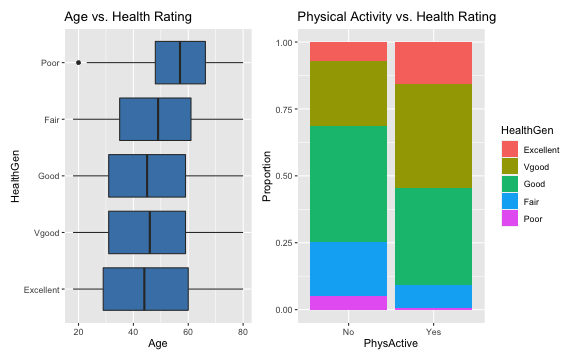

## Exploratory data analysis

---

## Model in R

- Use the `multinom()` function in the `nnet` package

```r
library(nnet)
health_m <- multinom(HealthGen ~ Age + PhysActive,
 data = nhanes_adult)
```

- Put `results = "hide"` in the code chunk header to suppress convergence output

---

## Output results

```r
tidy(health_m, conf.int = TRUE, exponentiate = FALSE) %>%
  kable(digits = 3, format = "markdown")
```

---

## Model output

.small[

|y.level |term          | estimate| std.error| statistic| p.value| conf.low| conf.high|
|:-------|:-------------|--------:|---------:|---------:|-------:|--------:|---------:|
|Vgood   |(Intercept)   |    1.205|     0.145|     8.325|   0.000|    0.922|     1.489|
|Vgood   |Age           |    0.001|     0.002|     0.369|   0.712|   -0.004|     0.006|
|Vgood   |PhysActiveYes |   -0.321|     0.093|    -3.454|   0.001|   -0.503|    -0.139|
|Good    |(Intercept)   |    1.948|     0.141|    13.844|   0.000|    1.672|     2.223|
|Good    |Age           |   -0.002|     0.002|    -0.977|   0.329|   -0.007|     0.002|
|Good    |PhysActiveYes |   -1.001|     0.090|   -11.120|   0.000|   -1.178|    -0.825|
|Fair    |(Intercept)   |    0.915|     0.164|     5.566|   0.000|    0.592|     1.237|
|Fair    |Age           |    0.003|     0.003|     1.058|   0.290|   -0.003|     0.009|
|Fair    |PhysActiveYes |   -1.645|     0.107|   -15.319|   0.000|   -1.856|    -1.435|
|Poor    |(Intercept)   |   -1.521|     0.290|    -5.238|   0.000|   -2.090|    -0.952|
|Poor    |Age           |    0.022|     0.005|     4.522|   0.000|    0.013|     0.032|
|Poor    |PhysActiveYes |   -2.656|     0.236|   -11.275|   0.000|   -3.117|    -2.194|
]

---

## Fair vs. Excellent Health

The baseline category for the model is .vocab[`Excellent`].

The model equation for the log-odds a person rates themselves as having "Fair" health vs. "Excellent" is

`$$\log\Big(\frac{\hat{\pi}_{Fair}}{\hat{\pi}_{Excellent}}\Big) = 0.915  + 0.003 ~ \text{age} - 1.645 ~ \text{PhysActive}$$`

---

## Interpretations

.eq[
`$$\log\Big(\frac{\hat{\pi}_{Fair}}{\hat{\pi}_{Excellent}}\Big) = 0.915  + 0.003 ~ \text{age} - 1.645 ~ \text{PhysActive}$$`
]

For each additional year in age, the odds a person rates themselves as having fair health versus excellent health are expected to multiply by 1.003 (exp(0.003)), holding physical activity constant.

The odds a person who does physical activity will rate themselves as having fair health versus excellent health are  expected to be 0.193 (exp(-1.645	)) times the odds for a person who doesn't do physical activity, holding age constant.

---

## Interpretations

.eq[
`$$\log\Big(\frac{\hat{\pi}_{Fair}}{\hat{\pi}_{Excellent}}\Big) = 0.915  + 0.003 ~ \text{age} - 1.645 ~ \text{PhysActive}$$`
]

The odds a 0 year old person who doesn't do physical activity rates themselves as having fair health vs. excellent health are 2.497 (exp(0.915)).

⚠️ **Need to mean-center age for the intercept to have a meaningful interpretation!**

---

## Hypothesis test for `$\beta_{jk}$`

The test of significance for the coefficient `$\beta_{jk}$` is

.alert[

**Hypotheses**: `$H_0: \beta_{jk} = 0 \hspace{2mm} \text{ vs } \hspace{2mm} H_a: \beta_{jk} \neq 0$`

**Test Statistic**: `$$z = \frac{\hat{\beta}_{jk} - 0}{SE(\hat{\beta_{jk}})}$$`

**P-value**: `$P(|Z| > |z|)$`,

where `$Z \sim N(0, 1)$`, the Standard Normal distribution
]

---

## Confidence interval for `$\beta_{jk}$`

- We can calculate the .vocab[C% confidence interval] for `$\beta_{jk}$` using the following:

`$$\hat{\beta}_{jk} \pm z^* SE(\hat{\beta}_{jk})$$`
where `$z^*$` is calculated from the `$N(0,1)$` distribution

.alert[
We are `$C\%$` confident that for every one unit change in `$x_{j}$`, the odds of `$y = k$` versus the baseline will multiply by a factor of `$\exp\{\hat{\beta}_{jk} - z^* SE(\hat{\beta}_{jk})\}$` to `$\exp\{\hat{\beta}_{jk} + z^* SE(\hat{\beta}_{jk})\}$`, holding all else constant.
  ]

---

## Interpreting confidence intervals for `$\beta_{jk}$`

We are 95% confident, that for each additional year in age, the odds a person rates themselves as having fair health versus excellent health will multiply by  0.997 (exp(-0.003)) to 1.009 (exp(0.009)) , holding physical activity constant.

---

## Interpreting confidence intervals for `$\beta_{jk}$`

We are 95% confident that the odds a person who does physical activity will rate themselves as having fair health versus excellent health are 0.156 (exp(-1.856	)) to 0.238 (exp(-1.435)) times the odds for a person who doesn't do physical activity, holding age constant.

---

## Recap

- Introduce multinomial logistic regression

- Interpret model coefficients

- Inference for a coefficient `$\beta_{jk}$`
